HomeProductsLED Outdoor LightingLED Flood LightLED Round Flood Lights Fixture

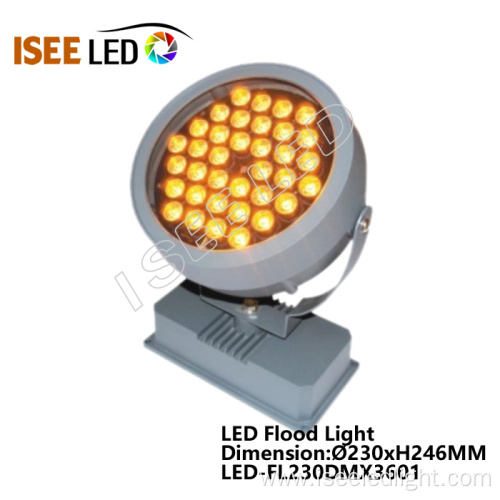

LED Round Flood Lights Fixture

Payment Type:
T/T,Paypal,Money Gram,Western Union
Incoterm:
FOB,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Port:
Shenzhen,Guangzhou,Hongkong
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.LED-FL330145DMX3601

BrandISEELED

Projection Distance12-18m

Color Temperature(CCT)Cool White

Body MaterialAluminum Alloy

IP RatingIP65

Lighting Bulbs & TubeEnergy Saving

ApplicationPark

Operating Voltage24V

ControlDMX 512

LED QTY36 Led

DMX Channels3 DMX CH For RGB 2 DMX CH For CW+WW 1 DMX CH For W

LED Average Life50,000 Hours

ColorRGB Or Single Color

Lens8° , 16 °, 25°, 30°, 45°, 60°

Supply Ability & Additional Information

PackagingBox

Productivity10000pcs per month

TransportationOcean,Land,Air

Place of OriginGuangdong, China

Supply Ability2000pcs per month

HS Code9405409000

PortShenzhen,Guangzhou,Hongkong

Payment TypeT/T,Paypal,Money Gram,Western Union

IncotermFOB,CIF

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Box

LED Round Flood Lights Fixture


Products Description

LED Flood lights fixture always for flood lights to light a wide or narrow place, like a tree, figure, building frame, landscape lighting, stadium lighting, etc. As a Outdoor Led Lighting, the flood light is waterproof. Floodlight run on 12V, 24V, 110V-220V, and the dmx Led Flood Light can control by standard dmx LED Controller, like sunlite, madrix, etc.

The flood lights panel can be rectangle, square, round, two head flood lights.The output wattage from 9W LED Flood Light, 18W led flood light, 30W led flood light, 36W led flood light, upto 72W led flood light, 144W led flood light.



Model NO.

LED-FL430162DMX3601

LED-FL330145DMX3601

LED-PL203DMX1801

Material

Stretched  Aluminum

Die-casting Aluminum

Die-casting Aluminum

Size

430*162*101mm

330*145mm

Ø230xH246MM

Power

can make  18W , 24W , 36W

Working Voltage

DC 24V

Color Range

RGB, red, green, blue, white

Beam Angle

8° , 16 °, 25°, 30°, 45°, 60°

Address Setting

Automatically/Manually

Protocol / Dimming

DMX512

Lifespan

50000 hours

Protection

IP65

Operating Temperature

-20 to 50degree Celsius

Storage Temperature

-40~ + 80degree Celsius

Guarantee

2 years

Ordering Information

Model No.

 Details

Wall    Washer

LED-FL430162DMX3601

430*162*101mm, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input,  DMX 512, max 45W, IP65

LED-FL330162DMX1801

330*162*101mm, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input,  DMX 512, max 28W, IP65

LED-FL330145DMX3601

330*145mm, 12RGB, 12white, 24 leds, tempered glass, 24V DC input, DMX  512, max 45W, IP65

LED-FL230DMX1801

Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 70W, IP65

LED-FL230DMX3601

Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65

LED-FL203DMX1801

Ø203xH360MM,, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input, DMX 512, max 28W, IP65

LED-FL470DMX7201

470*45*420mm, 24Red, 24Green, 23Blue, 72pcs 2W leds, tempered glass, 24V DC input, DMX 512, max 200W, IP65

Controller    and    Power Supply

HLG-240H-24

  Meanwell 240W, DC 24V output, IP65 / IP67

HLG-320H-24

  Meanwell 320W, DC 24V output, IP65 / IP67

HLG-320H-24B

  Meanwell 320W, DC 24V output, IP65, PWM/1-10V DC / resistance dimming function

LRS-350-24

  Meanwell 350W, DC 24V output, indoor

RSP-320-24

  Meanwell 320W, DC 24V output, indoor with PFC

LED-01SC

  DMX Led Controller, SD card offline, 1* 512 CH

IA-001005

  Madrix Plexus, 2*512 DMX CH, Standalone or Online

LED-DW100

DMX Led Address Writer

Cables

LED-BI(1000)4FB

 10M black 4 pin female to bare cable( the bare cable to controller)

LED-BI(300)4M4F

 3M black 4 pin male to 4 pin female

LED-BI(100)2FB

 1M black 2 pin female to bare cable( the bare cable to Power Supply)



Photo Show

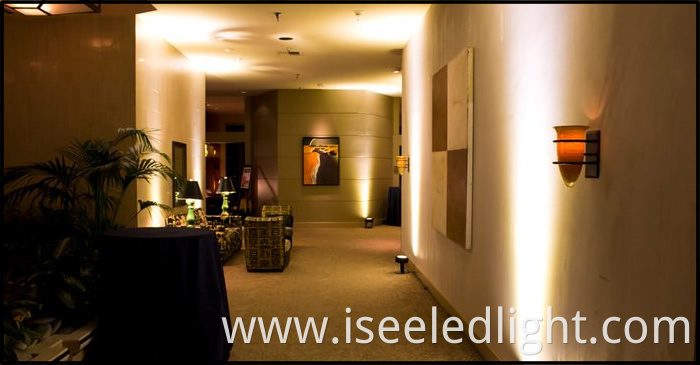

Flood LightsLed light fixture bright lighting


Packaging&Shipping

Packageshipping


Our service

Pre-Sales  Service

24 hours of service, and provide customized solution and proposal according to customer`s different requirements, products categories, successful projects examples etc. And factory visiting, simulated effect drawing etc.

In-Sales  Service

Provide details about production schedule and procedure and free spare parts: necessary spare parts are provided together with products to customers.

After-Sales  Service

Free technical training and quality warranty. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software etc.And complaint respond period not exceed 24 hours; maintenance guidance and problem solution provided in 48 hours.
