LED Uplight Flood Light Wide Narrow Beam Angle

Share to:
    Payment Type: T/T,Paypal,Money Gram,Western Union
    Incoterm: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 12 Days

Basic Info

Model No.: LED-PL203DMX1801

Projection Distance: 12-18m

Color Temperature(CCT): Cool White

Body Material: Aluminum Alloy

IP Rating: IP65

Lighting Bulbs & Tube: Energy Saving

Application: Square, Garden, Park

Operating Voltage: 24V

Size: Ø203xH246MM

Control: DMX 512

LED QTY: 36 Led

DMX Channels: 3 DMX CH For RGB 2 DMX CH For CW+WW 1 DMX CH For W

LED Average Life: 50,000 Hours

Color: RGB Or Single Color

Lens: 8° , 16 °, 25°, 30°, 45°, 60°

Additional Info

Packaging: Box

Productivity: 10000pcs per month

Brand: ISEELED

Transportation: Ocean,Land,Air

Place of Origin: Guangdong, China

Supply Ability: 2000pcs per month

HS Code: 9405409000

Port: Shenzhen,Guangzhou,Hongkong

Product Description

LED Uplight Flood Light Wide Narrow Beam Angle


Products Description

LED Uplight Flood Light fixture always for Flood Lights to light in wide or narrow angle, and different place need different requiments in lumen output and lighten up area. The LED Uplight Flood Light widely used for tree, figure, building frame, landscape lighting, stadium lighting, etc. As a Outdoor Led Lighting, the led uplight flood light is waterproof. Floodlight run on 12V, 24V, 110V-220V, and the dmx LED Flood Light can control by standard dmx Led Controller, like sunlite, madrix, etc.

The flood lights panel can be rectangle, square, round, two head flood lights.The output wattage from 9W Led Flood Light, 18W led flood light, 30W led flood light, 36W led flood light, upto 72W led flood light, 144W led flood light. narrow beam angle like 1degree led uplight, 8degree led uplight, 16 degree led uplight, and wide beam angle like 30 degree, 45 degree, 60 degree, 90 degree, 120 degree led uplight flood light.



Model NO.

LED-FL430162DMX3601

LED-FL330145DMX3601

LED-PL203DMX1801

Material

Stretched Aluminum

Die-casting Aluminum

Die-casting Aluminum

Size

430*162*101mm

330*145mm

Ø230xH246MM

Power

can make 18W , 24W , 36W

Working Voltage

DC 24V

Color Range

RGB, red, green, blue, white

Beam Angle

8° , 16 °, 25°, 30°, 45°, 60°

Address Setting

Automatically/Manually

Protocol / Dimming

DMX512

Lifespan

50000 hours

Protection

IP65

Operating Temperature

-20 to 50degree Celsius

Storage Temperature

-40~ + 80degree Celsius

Guarantee

2 years

Ordering Information

Model No.

Details

Wall Washer

LED-FL430162DMX3601

430*162*101mm, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65

LED-FL330162DMX1801

330*162*101mm, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input, DMX 512, max 28W, IP65

LED-FL330145DMX3601

330*145mm, 12RGB, 12white, 24 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65

LED-FL230DMX1801

Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 70W, IP65

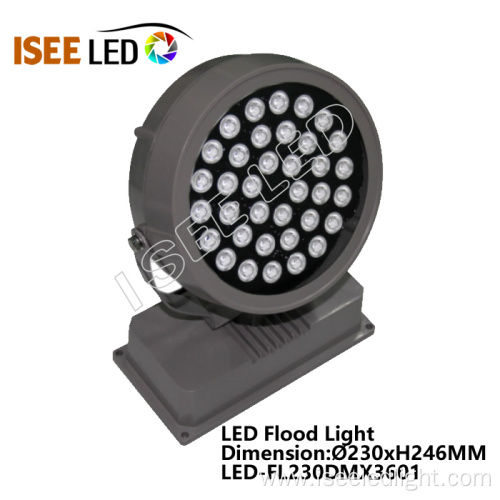

LED-FL230DMX3601

Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65

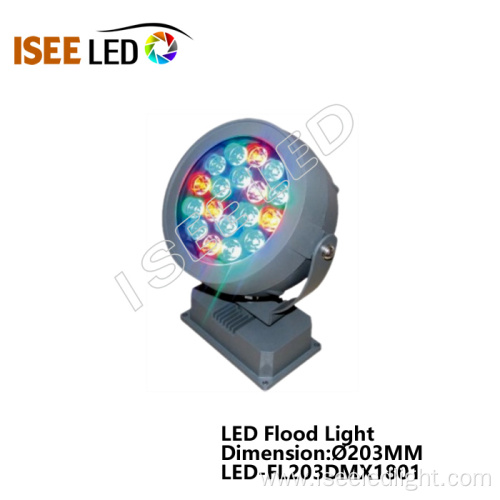

LED-FL203DMX1801

Ø203xH360MM,, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input, DMX 512, max 28W, IP65

LED-FL470DMX7201

470*45*420mm, 24Red, 24Green, 23Blue, 72pcs 2W leds, tempered glass, 24V DC input, DMX 512, max 200W, IP65

Controller and Power Supply

HLG-240H-24

Meanwell 240W, DC 24V output, IP65 / IP67

HLG-320H-24

Meanwell 320W, DC 24V output, IP65 / IP67

HLG-320H-24B

Meanwell 320W, DC 24V output, IP65, PWM/1-10V DC / resistance dimming function

LRS-350-24

Meanwell 350W, DC 24V output, indoor

RSP-320-24

Meanwell 320W, DC 24V output, indoor with PFC

LED-01SC

DMX LED Controller, SD card offline, 1* 512 CH

IA-001005

Madrix Plexus, 2*512 DMX CH, Standalone or Online

LED-DW100

DMX Led Address Writer

Cables

LED-BI(1000)4FB

10M black 4 pin female to bare cable( the bare cable to controller)

LED-BI(300)4M4F

3M black 4 pin male to 4 pin female

LED-BI(100)2FB

1M black 2 pin female to bare cable( the bare cable to Power Supply)



Photo Show

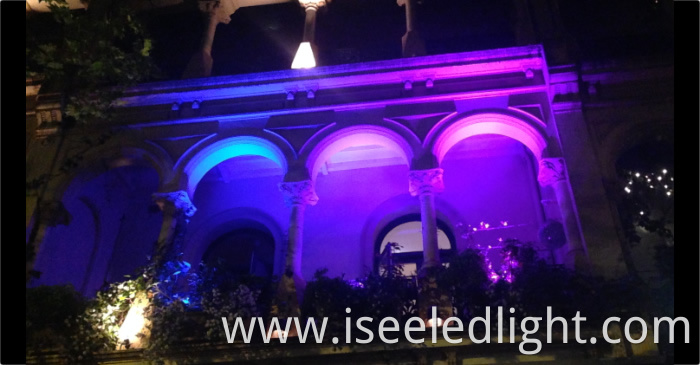

Flood Lights

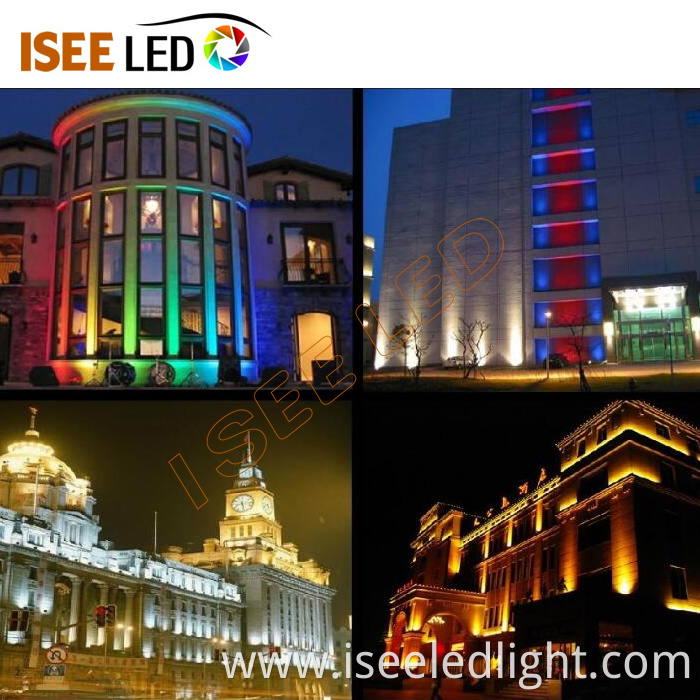

Iseeled Flood Light

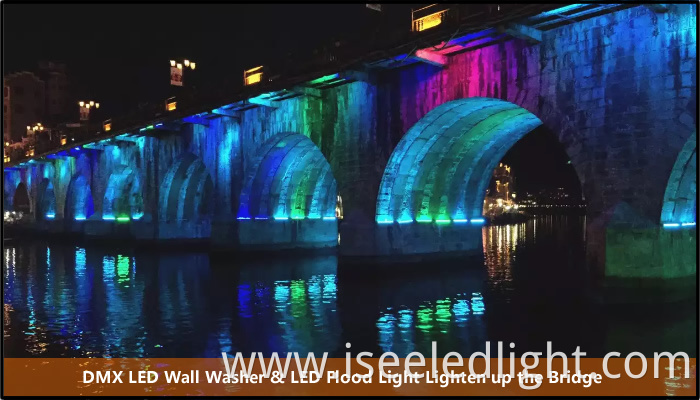

LED lights lighten up the bridge hole

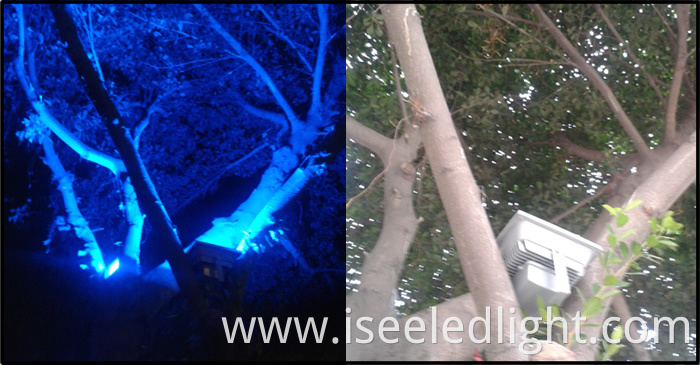

led uplight Flood Light for tree

Packaging&Shipping

Packageshipping


Our service

Pre-Sales Service

24 hours of service, and provide customized solution and proposal according to customer`s different requirements, products categories, successful projects examples etc. And factory visiting, simulated effect drawing etc.

In-Sales Service

Provide details about production schedule and procedure and free spare parts: necessary spare parts are provided together with products to customers.

After-Sales Service

Free technical training and quality warranty. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software etc.And complaint respond period not exceed 24 hours; maintenance guidance and problem solution provided in 48 hours.


Looking for ideal LED Uplight Narrow Beam Angle Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the LED Uplight Wide Beam Angle are quality guaranteed. We are China Origin Factory of LED Flood Light Wide Beam Angle. If you have any question, please feel free to contact us.
